iBasso DX320 MAX High-End Digital Audio Player with Quad ROHM BD34301EKV DACs, Super Class A Amplification, 32-bit 768kHz and DSD512 Support. This titanium portable player delivers exceptional clarity through its balanced outputs and precise stepped attenuator. Dual OS Android 11 with Mango mode gives flexible listening options while the dedicated power design ensures pure signal delivery for demanding headphones.

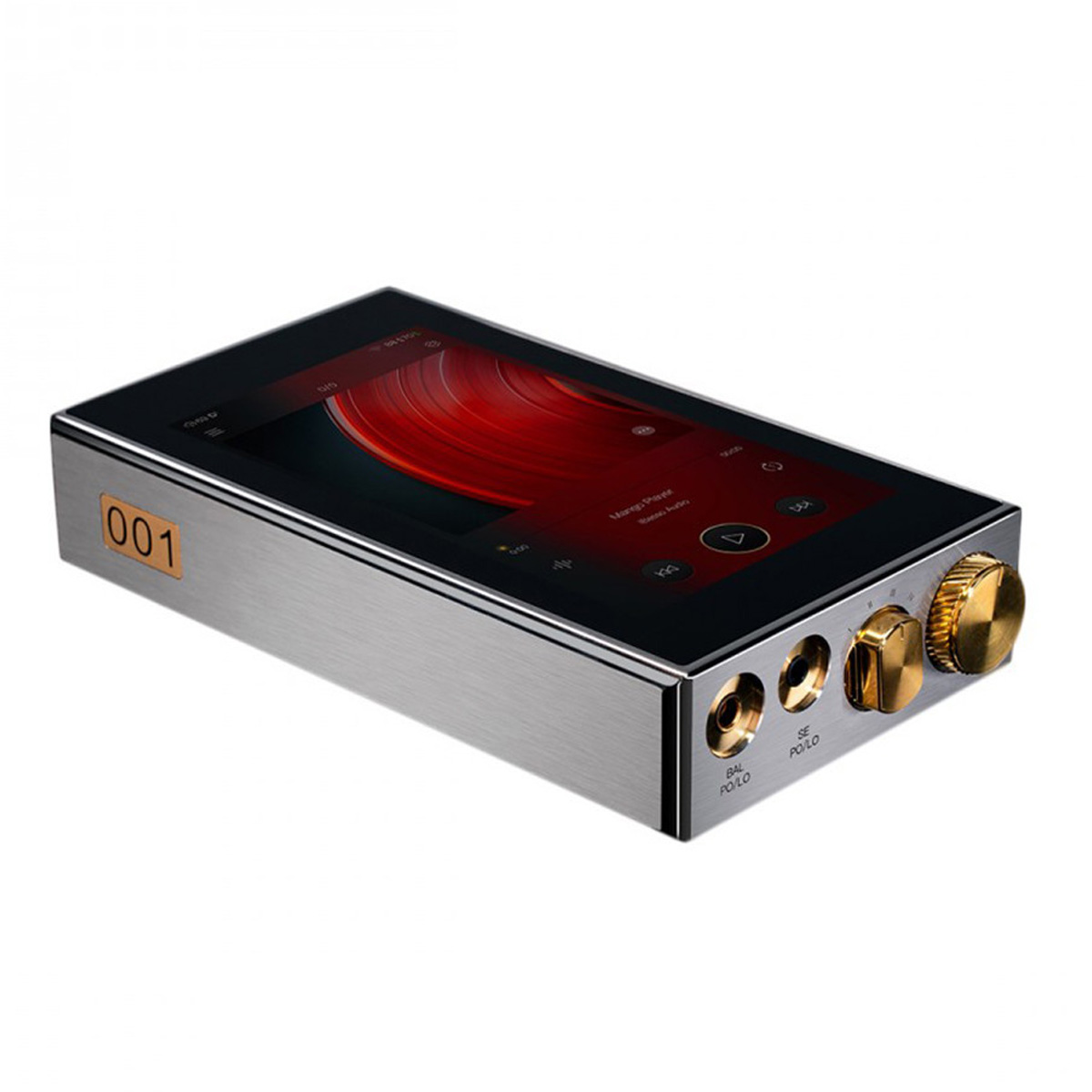

About iBasso DX320 MAX
The iBasso DX320 MAX brings flagship audio performance through its quad ROHM BD34301EKV DAC chips arranged in a fully balanced setup. This configuration delivers bit-for-bit playback that reaches 32-bit at 768kHz for PCM files and native DSD up to 512x. Users gain exceptional clarity and detail in every track because the FPGA-Master technology takes full control of the audio pathway while the two Accusilicon femtosecond oscillators maintain perfect timing and reduce jitter for a more natural listening experience.
Qualcomm Snapdragon 660 octa-core processor works together with 6GB LPDDR4X RAM and 128GB internal storage to keep the interface responsive. The optimized Android 11 system offers dual-boot access to Mango OS so listeners can switch to a pure audio environment whenever they want maximum focus on music. Expandable microSD support up to 2TB and USB 3.1 transfer speeds make it easy to carry and manage large hi-res libraries without slowdowns.
Super Class A discrete amplification provides clean power that eliminates switching distortion and keeps heat generation low. The patented dual-battery design supplies dedicated power with true +/-8.4V to the analog section which preserves signal purity and current delivery. Four physical gain settings combined with the custom 4-section stepped attenuator give precise volume control with less than 0.1dB channel imbalance so every adjustment feels accurate and musical.
Versatile outputs on the iBasso DX320 MAX include 4.4mm balanced and 3.5mm single-ended ports that function as both headphone and line out. Balanced output delivers up to 9Vrms while single-ended reaches 4.5Vrms which drives demanding headphones with authority. Additional digital options such as mini coaxial output, USB DAC mode, and USB digital output allow the player to serve as a high-performance desktop source. Built-in 2.4G and 5G WiFi plus Bluetooth 5.0 ensure seamless wireless connectivity and streaming.
The aerospace titanium chassis measures 146 by 86 by 30 millimeters and weighs 620 grams for a solid premium feel. A 5-inch IPS display with 1080 by 1920 resolution offers clear visuals and responsive touch control. Support for formats including MQA, APE, FLAC, WAV and many others completes the package so the device handles virtually any music collection with ease.
Specifications
| Specification | Value |
|---|---|
| DAC Chips | Quad ROHM BD34301EKV |
| SoC | Qualcomm Snapdragon 660 |
| RAM | 6GB LPDDR4X |
| Internal Storage | 128GB |
| Operating System | Android 11 with Mango OS |
| Screen | 5.0 inch IPS 1080×1920 |
| Max PCM | 32-bit 768kHz |
| Max DSD | Native DSD512 |
| Balanced Output | Up to 9Vrms |
| Single-Ended Output | Up to 4.5Vrms |
| Gain Settings | 4 |
| WiFi | 2.4G and 5G |
| Bluetooth | 5.0 |
| Dimensions | 146 x 86 x 30 mm |
| Weight | 620g |
| Price | $3149 |
Reviews
Sound quality blew me away right from the first track. The details in high resolution files come through so clearly and the power handles my demanding headphones without any strain. Battery lasts through long listening sessions and the build feels rock solid.
Love how smooth the interface runs and switching between operating systems is quick. Balanced output gives my IEMs excellent separation and the volume control is precise. It replaced my desktop setup for daily use and I enjoy the natural tone.
Portable player delivers impressive dynamics with classical pieces. Touch screen responds well and storage expansion makes carrying large libraries easy. The amplification stays clean even at higher volumes and the overall experience feels premium.
