iBasso DX260 Digital Audio Player with octa CS43198 DACs, FPGA-Master 2.0, and support for 32-bit/768kHz PCM plus native DSD256. It offers powerful balanced and single-ended outputs along with versatile connectivity options for high-resolution listening on the go. The Snapdragon-powered system with expandable storage delivers smooth performance and long battery life for music enthusiasts.

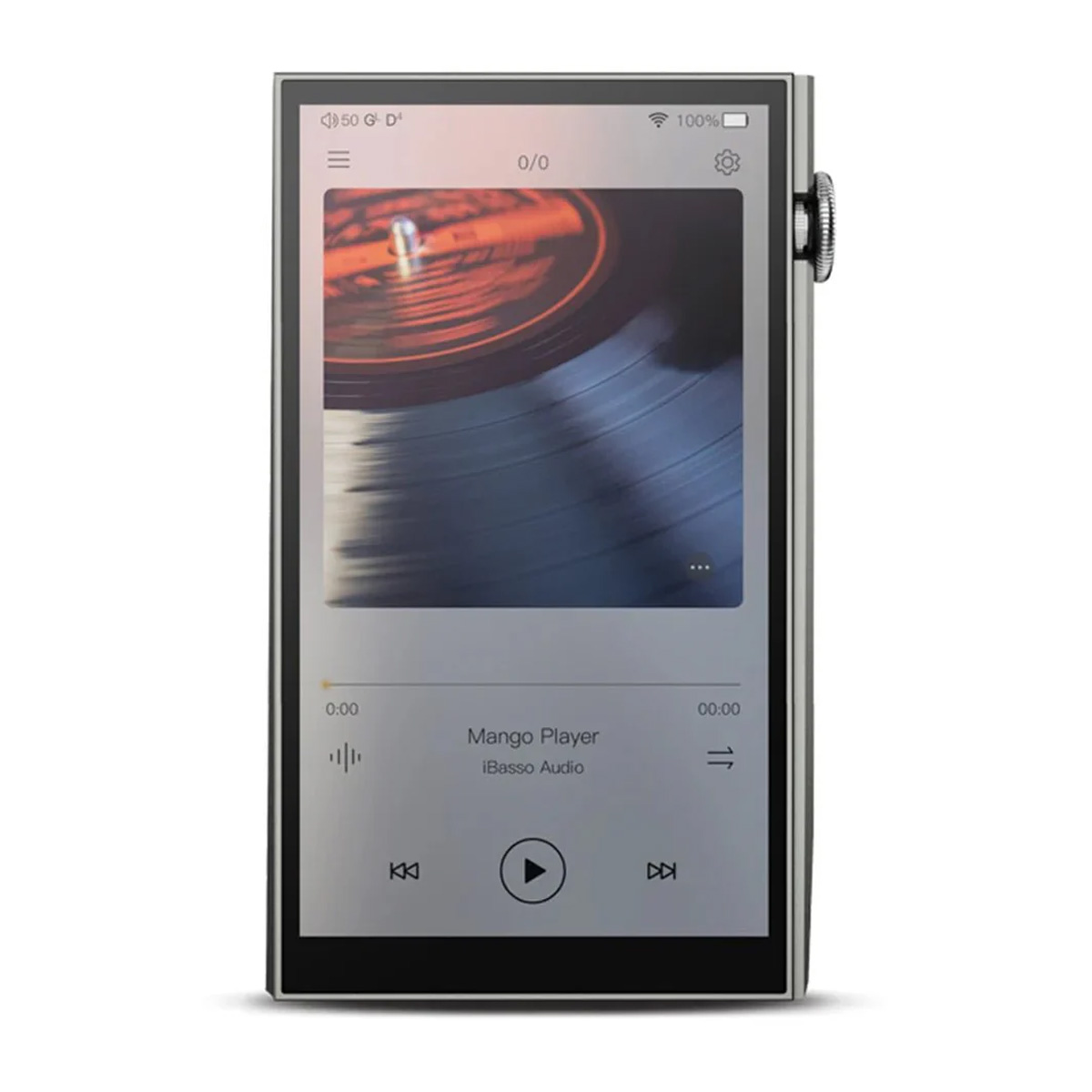

About iBasso DX260
The iBasso DX260 delivers outstanding audio performance through its advanced core architecture. It uses an octa DAC setup with eight Cirrus Logic CS43198 chips managed by the FPGA-Master 2.0 controller along with two NDK femtosecond oscillators and multiple hardware FIR filters. This combination processes digital signals with exceptional precision so listeners enjoy richer details and smoother sound reproduction that brings music closer to the original recording.
High resolution playback capabilities make the device versatile for demanding files. It handles bit-for-bit playback up to 32-bit/768kHz PCM and native DSD256 while achieving a dynamic range up to 134dB and very low THD+N. The frequency response covers 10Hz to 75kHz with strong SNR values that ensure clean and expansive sound across different genres and listening environments.
Multiple output options give users flexibility in connecting headphones or external gear. The 3.5mm single-ended port provides up to 3Vrms and 280mW at 32Ω while the 4.4mm balanced output reaches 6Vrms and 1015mW at 32Ω. Additional line outputs, mini coaxial, and USB digital connections support high-resolution transfer including native DSD256 so the player works seamlessly as a source or DAC.
Powerful system hardware supports smooth daily use and music management. The Qualcomm Snapdragon 660 processor pairs with 4GB RAM and 64GB storage plus expandable microSD up to 2TB. Dual-boot Android 11 and Mango OS run on the sharp 5-inch 1080×1920 touchscreen with Bluetooth 5.0, dual-band Wi-Fi, and fast charging via the 4400mAh battery that delivers solid playback time.
Users benefit from practical controls that enhance the overall experience. Three gain levels and 100-step volume adjustment allow fine tuning for any headphones. The removable back cover and support for many audio formats including FLAC, WAV, DSD, and others plus M3U playlists make library organization straightforward and convenient during extended listening sessions.
Specifications
| Specification | Value |
|---|---|
| DAC Chipset | 8 x CS43198 |
| System Controller | FPGA-Master 2.0 |
| Oscillators | 2 x NDK femtosecond |
| Processor | Qualcomm Snapdragon 660 |
| RAM | 4 GB LPDDR4X |
| Internal Storage | 64 GB |
| Screen | 5.0 inch 1080×1920 IPS |
| Bluetooth | 5.0 with LDAC |
| Wi-Fi | Dual band 2.4GHz and 5GHz |
| Battery | 4400 mAh |
| 3.5mm Output Power | 280 mW at 32Ω |
| 4.4mm Output Power | 1015 mW at 32Ω |
| Max PCM | 32 bit / 768 kHz |
| Max DSD | Native 256 |
| Price | $949 |
