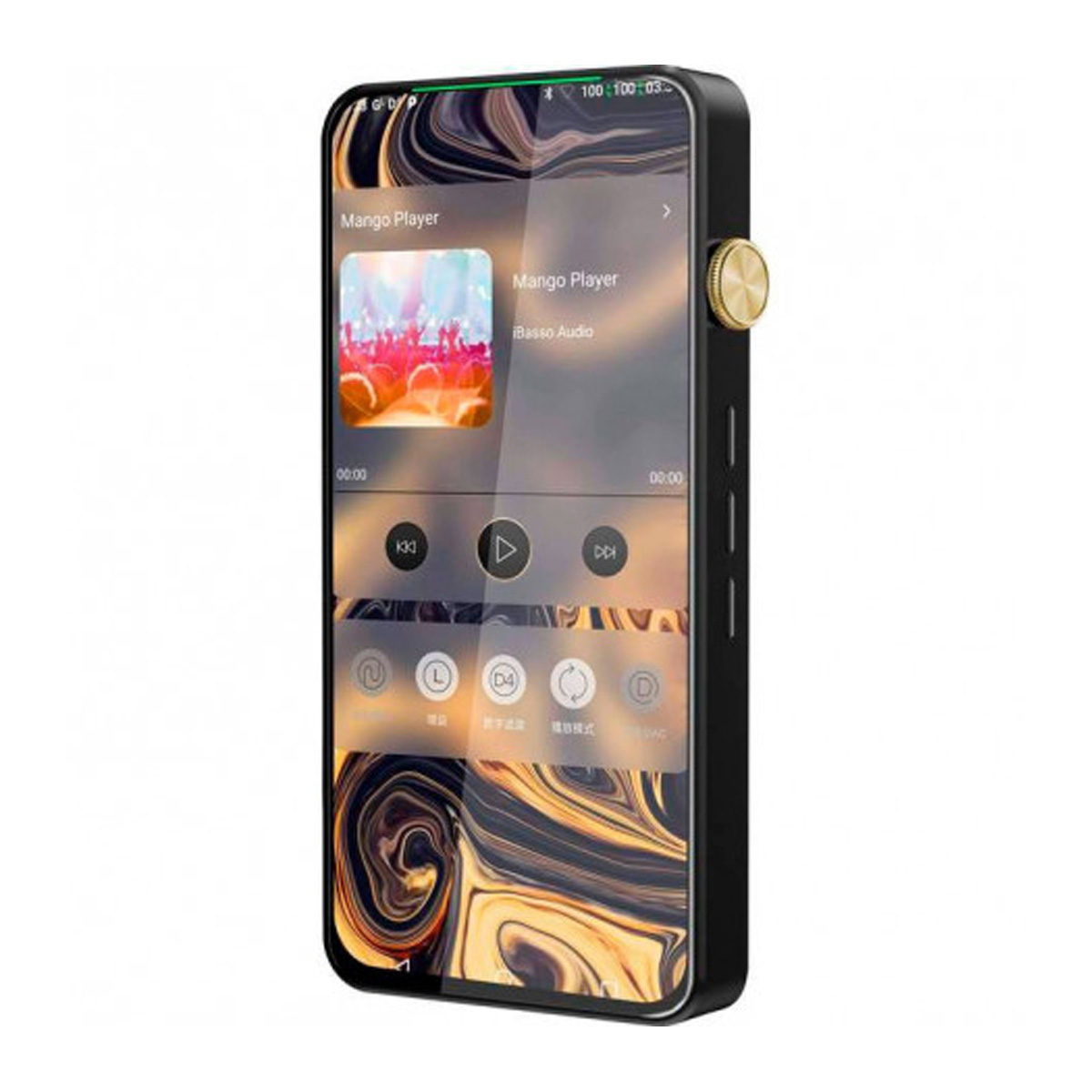

iBasso DX300 Reference Digital Audio Player with quad CS43198 DACs, Snapdragon 660 processor, 6.5-inch IPS screen and balanced outputs. It supports high-resolution playback up to 32-bit 384kHz and native DSD256. The large display and versatile connectivity make it a powerful portable solution for audiophiles seeking detailed sound.
About iBasso DX300
The iBasso DX300 delivers exceptional audio performance through its advanced processing setup. It runs on a Qualcomm Snapdragon 660 octa-core processor paired with 6GB of RAM and 128GB of internal storage that expands via microSD cards. This combination ensures smooth operation whether you stream music or run apps on the Android 9.0 system with Mango OS option available. Users benefit from fluid multitasking and quick access to their entire music library without any lag.
Quad Cirrus Logic CS43198 DAC chips handle signal conversion in a fully balanced design. The player supports native PCM playback up to 32bit at 384kHz along with native DSD up to DSD256. FPGA master clock technology works with ultra-low phase noise oscillators to maintain precise timing. Listeners enjoy detailed and accurate sound reproduction that brings out nuances in high-resolution tracks.
A large 6.5 inch 2340 by 1080 LTPS IPS display with In-Cell touch provides clear visuals and easy navigation. The device measures 162mm by 77mm by 17mm and weighs 300g while incorporating a dual battery system that separates power for digital and amplification sections. Fast charging via QC3.0 and PD2.0 keeps the player ready for extended listening sessions on the go.
Multiple output options cover every listening preference. You get 3.5mm single-ended ports plus 4.4mm and 2.5mm balanced connections for headphones and line level. USB Type-C enables DAC functionality and digital output while mini coaxial adds another connection choice. Bluetooth 5.0 and 5GHz WiFi with MIMO antenna support wireless streaming and high-speed data transfers complete the versatile package.
Powerful amplification delivers up to 1240mW into 32ohm loads on balanced output with maximum voltage reaching 7.1Vrms. Frequency response spans 10Hz to 40kHz with excellent signal-to-noise and dynamic range values. The interchangeable amplifier module design allows customization to match different headphones. This setup gives users strong drive capability and clean power for demanding audio equipment.
Specifications
| Parameter | Value |
|---|---|
| OS | Android 9.0 with dual-boot Mango OS |
| CPU | Qualcomm Snapdragon 660 octa-core |
| RAM | 6GB LPDDR4X |
| Internal storage | 128GB |
| DAC | 4x Cirrus Logic CS43198 |
| Screen | 6.5 inch 2340×1080 IPS |
| Outputs | 3.5mm SE, 4.4mm balanced, 2.5mm balanced |
| Digital outputs | USB, mini coaxial |
| Wireless | Bluetooth 5.0, 5GHz WiFi |
| Battery | Dual Li-Polymer 4000mAh digital + 2000mAh amp |
| Playback support | PCM up to 32-bit 384kHz, native DSD256 |
| USB DAC support | Up to 32-bit 384kHz and DSD128 |
| FPGA | Yes with master clock sync |
| Oscillators | 2x femtosecond ultra-low phase noise |
| Price | $1199 |
Reviews
Sound comes through with great clarity and depth. The big screen makes navigation easy even when I am out walking. Battery lasts long enough for full days of listening with my favorite headphones.
Details in my music files really stand out now. Balanced connections give strong clean power to harder to drive headphones. I love how fast everything runs without any slowdowns during use.
High resolution tracks play smoothly with rich tones. The player feels solid yet not too heavy for daily carry. Wireless options work well when I want to stream without cables attached.
